SPECIFICATIONS

BUILT IN YANGON 2007BY AYRAVATA CRUISES AT MYANMA SHIPYARDS (YANGON-MYANMAR)

Length183 FT (55.78 MT)
Beam38 FT (11.58 MT)
Design Draft3.09 FT (1.14 MT)
Deck3
Design Engines2 X 425 HP CUMMINS MARINE / MODEL KT19-M425.
PROPULSIONSCHOTEL TYPE OUTBOARD * MODEL: NAV180
DESIGN SPEED10 KNOTS
MAX. UPSTREAM SPEED8 NAUTICAL MILES PER HOUR (DRY SEASON)
MAX. DOWNSTREAM SPEED12 NAUTICAL MILES PER HOUR (DRY SEASON)
NAVIGATIONNAVIGATION LIGHTS, SHIPS HORN, SEARCHLIGHT
COMMSGSM PHONE, INTERNAL PHONE SYSTEM, TANNOY FOR NAVIGATION
GENERATORS2 X 175 KVA +1 X 50 KVA CUMMINS/MARATHON MARINE,
FIRE PROTECTIONSMOKE DETECTORS, HEAT DETECTORS, MANUAL ALARMS STATIONS, FIRE EXTINGUISHERS, FIRE HOSE, CABINETS, FIRE PUMPS
SAFETYEMERGENCY LIGHTS, EMERGENCY GENSET, LIFE JACKETS, LIFE RAFTS
CREW30


Hotel

PASSENGERS – 55

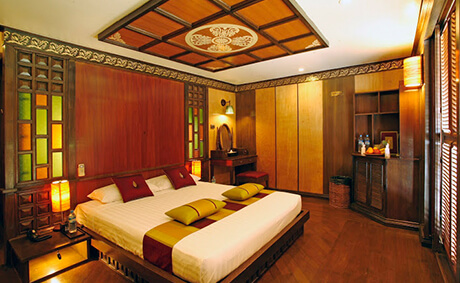

CABINS

29 WITH PRIVATE BATHROOM AND SHOWER

UPPER DECK

14 DELUXE (6 DOUBLE, 8 TWIN) * 21 SQ.MT/226 SQ. FT.

2 SUITE (BOW) -> 40 SQ.MT / 430 SQ. FT.

MAIN DECK

10 SUPERIOR TWINS * 15 SQ.MT./161 SQ. FT.

LOWER DECK

3 SINGLE FOR GUESTS -> 10 SQMT / 107 SQ. FT.

4 SINGLE FOR GUIDES/TL -> 8 SQMT / 86 SQ. FT.


LOUNGE & BAR -> ON THE SUNDECK/SOLARIUM (CAPACITY 35 SEATS)

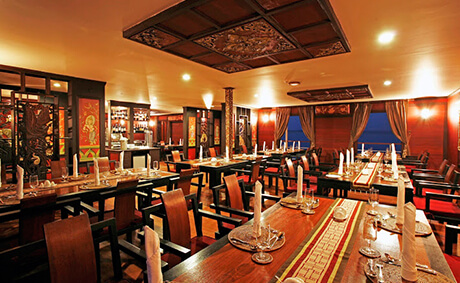

DINING ROOM -> ON THE MAIN DECK (CAPACITY: 56 SEATS)

MASSAGE -> ROOM 2 ON THE LOWER DECK

LECTURES -> ROOM FULLY EQUIPPED WITH LCD PROJECTOR/LCD TV (35 SEATS)

WATER -> DESEDIMENTATION AND FULL WATER TREATMENT – REVERSE OSMOSIS SYSTEM FOR THE KITCHEN
